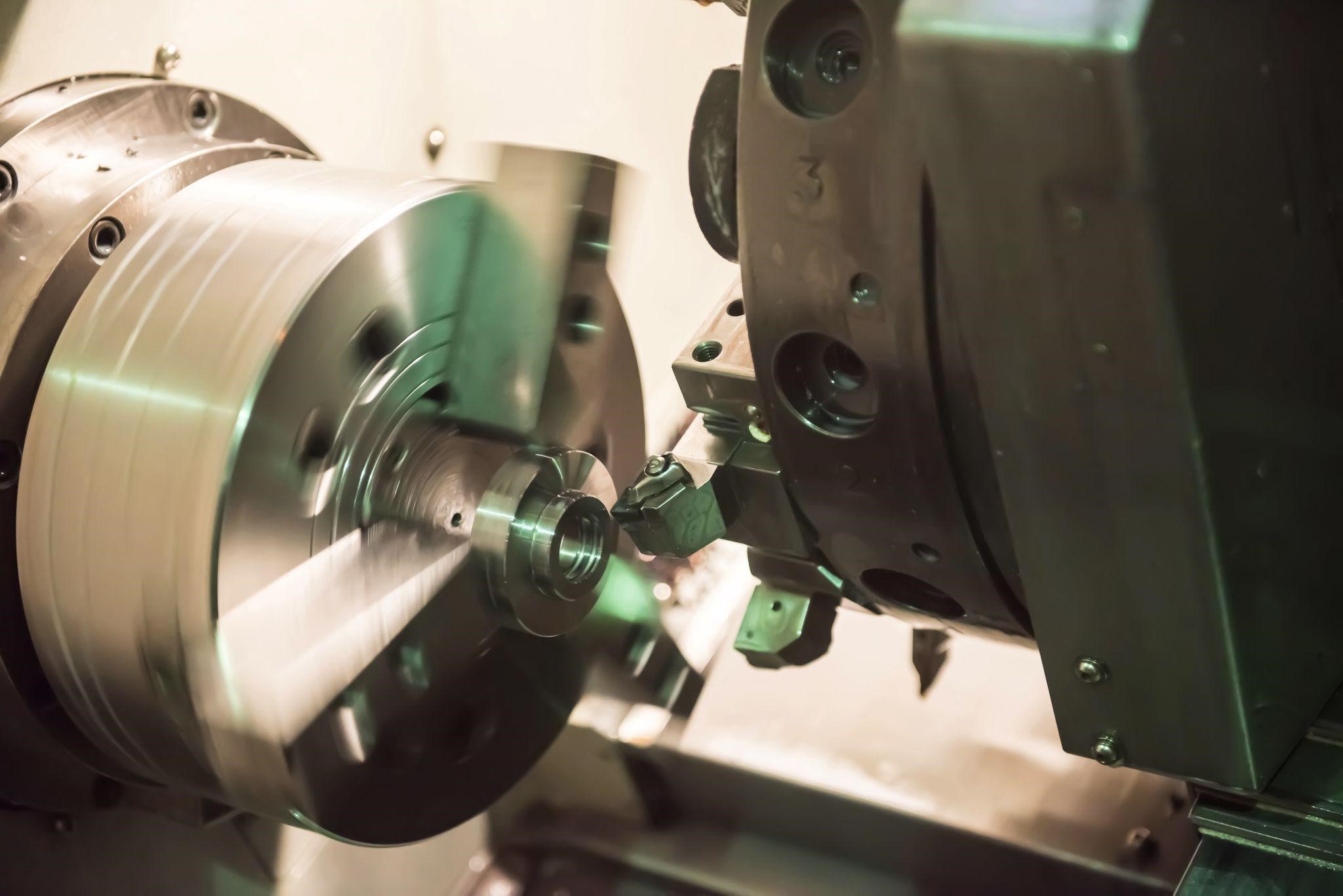

In industrial valves, the body typically starts as a casting or forging that defines the main flow path and connection geometry. Deciding to machine the interior of the valve body is not only a manufacturing choice. It has a direct impact on dimensional control, sealing performance, hydraulic behaviour, coating reliability and life-cycle cost.
For manufacturers such as FHT Valves ball valves, internal machining is treated as part of the functional design, not as a cosmetic step, particularly in demanding applications where reliability and repeatability are critical.
1. Improved dimensional precision
Internal machining allows tight tolerances on diameters, alignment and concentricity of seats, guides and flow passages. This reduces variation in the internal geometry and improves compatibility with trims, balls, plugs and other internal components.
A machined interior also improves assembly repeatability. Internal parts sit where they were designed to sit, with the expected clearances. This minimises the need for rework or selective assembly and simplifies quality control at final inspection, especially in complex configurations such as industrial ball valves.
2. Optimised sealing performance
Sealing performance is highly sensitive to surface finish and geometric accuracy in the seating areas. By machining the internal seat pockets and gasket faces, it is possible to control roughness and flatness so that the valve complies with the specified leakage classes.
A controlled surface finish improves the contact between body, seat rings and soft or metal seats. This reduces early wear and helps maintain tight shut-off over more cycles. In designs with spring-loaded seats in ball valves, the quality of the machined interfaces between body and seat carriers is essential for consistent contact pressure and stable torque behaviour.
3. Increased valve service life
As-cast or as-forged surfaces often show higher roughness and local irregularities. Machined surfaces have lower roughness and fewer stress concentrations, which reduces the probability of crack initiation and local damage under cyclic loading.
By smoothing internal geometry, machining decreases the risk of localised corrosion, cavitation and erosion in critical areas, such as sudden changes of section or sharp corners. It also helps to minimise internal vibration and flow-induced instabilities, extending the life of both the trim and the body, particularly in severe-service metal seated ball valves and trunnion metal-seated ball valves.
4. Enhanced hydraulic performance
From a hydraulic perspective, the internal shape of the body determines how the fluid accelerates, decelerates and changes direction. Machining the interior makes it possible to remove casting artefacts, blend transitions and adjust radii in order to reduce turbulence and pressure losses.
Optimised internal profiles improve the flow coefficient (Cv) for a given body size. In on–off ball valves and in specific configurations such as cavity-filler or full-bore designs, this improvement in internal flow conditions contributes to higher efficiency and more stable behaviour in high-velocity applications.
5. Compatibility with coatings and surface treatments
Many severe-service valves rely on internal coatings and surface treatments to improve corrosion and wear resistance. Processes such as HVOF, electroless nickel plating (ENP), hard chrome or Stellite overlays require a suitable base surface to ensure proper adhesion.
Machined surfaces provide the controlled roughness and cleanliness needed for reliable coating anchoring. They reduce the likelihood of defects such as poor bonding or local delamination in service. This is particularly relevant in the special ball valves range, where coatings are often a key element of the design.
6. Compliance with technical standards and specifications
A large number of industry standards explicitly or implicitly assume machined internal geometries in valve bodies. Standards such as API 6D, API 600, API 602, API 603 or ISO 17292 define dimensional tolerances and leakage requirements that are easier to achieve with machined, rather than purely cast, surfaces.
From a quality-management standpoint, machined features support traceability and process control within ISO 9001 systems. Tooling, CNC programs and inspection routines can be linked to specific dimensions and tolerances, which simplifies verification and documentation for both the manufacturer and the end user.
7. Long-term cost reduction
Internal machining adds operations to the manufacturing route, but it reduces cost over the valve life cycle.
At the factory, tighter dimensional control minimises scrap and rework. In service, better sealing performance, improved hydraulic behaviour and more reliable coatings reduce interventions related to leaks, vibration or poor performance. Over the life of the installation, the total cost of ownership is lower than with bodies that rely only on as-cast internal surfaces.
How FHT Valves applies internal machining
At FHT Valves, machining the interior of valve bodies is integrated into the design of our ball valve portfolio. Internal diameters, sealing areas and flow passages are defined with machining in mind so that:
- Balls, seats and trims assemble with the required precision.
- The valve can reliably achieve the specified leakage classes.
- Flow paths are consistent with the Cv and noise requirements of the process.
- Internal surfaces are ready for the coatings and treatments required by each duty.
Engineering and purchasing teams who need to review a specification or evaluate whether additional internal machining can improve performance in a particular service can contact FHT Valves for support in translating process requirements into dimensional and surface specifications for the valve body.
