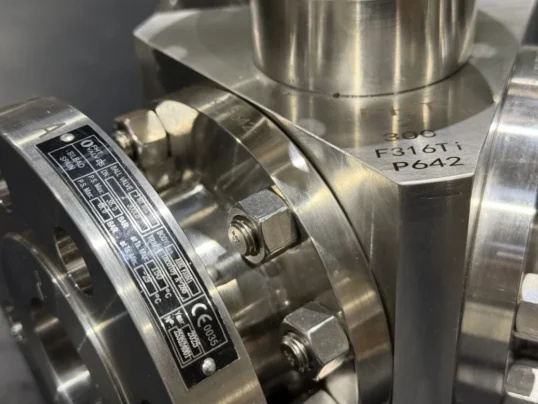

What is a 3-way Y-type ball valve?
A 3-way Y-type ball valve is a specialized valve designed to divert or mix flow in a pipeline. Its name “Y-type” comes from the orientation of its three ports, which are generally arranged in a “Y” shape, providing a smooth and efficient flow path.
Characteristics of 3-way valves:
- 3 Ports: They have one input and two outputs, or two inputs and one output, allowing great flexibility in the design of your system.
- Internal Ball: Contain a perforated ball that rotates to direct the flow, ensuring precise control and tight shut-off.
- Y configuration: This unique arrangement offers lower flow resistance and smoother transitions compared to valves with L or T ports, minimizing pressure loss and optimizing performance.
- Versatile Flow Options: Can be used for:
- Divert flow: Direct the flow from one input to two different outputs.
- Mix the flow: Combine the flow of two inputs into a single output.
Flow patterns:
Depending on the design of the internal ball bore, the 3-way Y-type valve can:
- Allow flow between two ports while isolating the third.
- (Less common in Y-type compared to T-type) Connect all three ports simultaneously, design permitting.
Y type ball valves applications:
The versatility of Y-type 3-way ball valves makes them an ideal choice for a wide range of industries:
- Chemical mixing: They facilitate the precise combination of different fluids in industrial processes.
- Tank switching: Allows to change the flow between different storage tanks in an efficient way.
- HVAC systems: Optimize water flow control in heating, ventilation and air conditioning systems.
- Water treatment: They play a crucial role in filtration, mixing and water diversion processes.
- Industrial automation: Seamless integration into automated systems for advanced flow control.
At FHT, we are committed to offering you the best solutions for your industrial needs. Y-type 3-way ball valves are a testament to efficiency and control, and we are ready to help you integrate them into your operations.
